| Place of Origin: | CHINA MAINLAND |
| Brand Name: | Mindeoil |
| Certification: | ISO, API, HSE |
| Model Number: | MD-1 |
| Minimum Order Quantity: | 200 Meter |
|---|---|
| Price: | USD 100-300/Meter |
| Packaging Details: | Packed in bundle and loaded in containers |
| Delivery Time: | 15-45 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 meter per month |
| Material: | 304, 316L | Size: | 1.9''-7'' |
|---|---|---|---|
| Length: | R1, R2, R3 | Slot Width: | 0.012'', 0.015'', 0.020'', 0.050'', 0.075'' |
| Application: | SAS, ICGP,OHGP, CHFP | Type: | V Wire Wrapped Screen |
| Technique: | Wire Wound,wedge Wire | Wire Diameter: | Requirement,0.5-8mm |
| Product Name: | Continuous Slot Wire Wrapped Well Screen (Length Up To 12m),V Shape Profile Wire Wrapped Screen /continuous-slot Water Well Screen,Wedge Wire Cylinder Filter Screen,Wire Wrap Screen 0.5Mm Stainless Steel 500 Micron Mesh Sieve,Duplex Stainless Wedge Wire Sc | Color: | Natural,metal |
| Feature: | Anti-corrosion,strong Impact Resistance,Durable,Solid Structure,High Strength | Usage: | Liquid Filter |
| Diameter: | From 25mm To 1300mm | Certification: | SGS,ISO 9001,ISO/CE |
| Sample: | Available | Packing: | By Crate,paper Tube Inside+ Wodden Box +plastic Bag + |

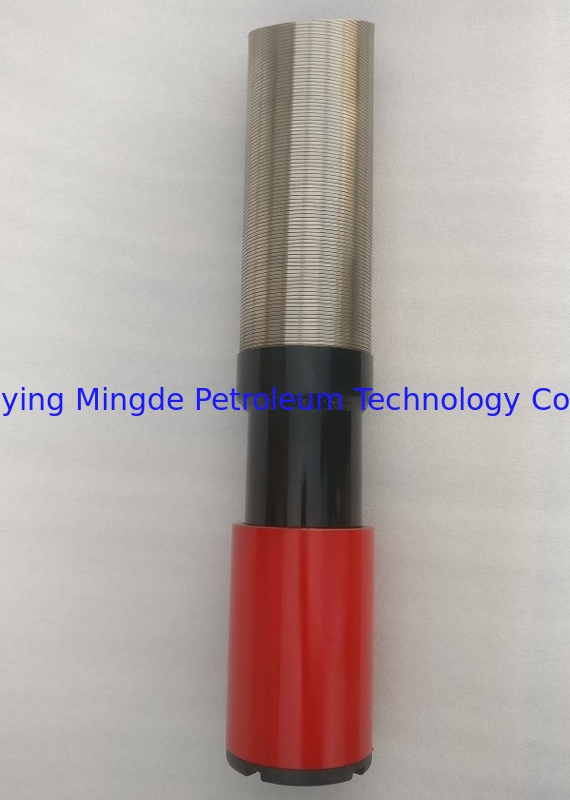

Wire Wrapped Screen Pipe for Downhole Sand Control Gravel Pack and Well Completion
Wire wrapped screen pipe is one of the most popular sand control equipment with long history due to its keystone structure slot and fine sand control accuracy. It can be used in oil well, water well and gas well for the following application: SAS, ICGP, OHGP, CHFP.

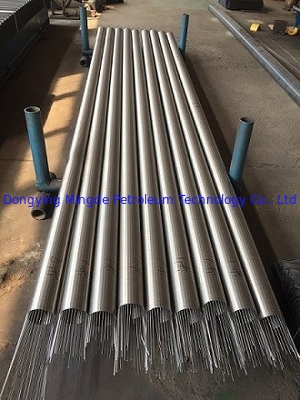

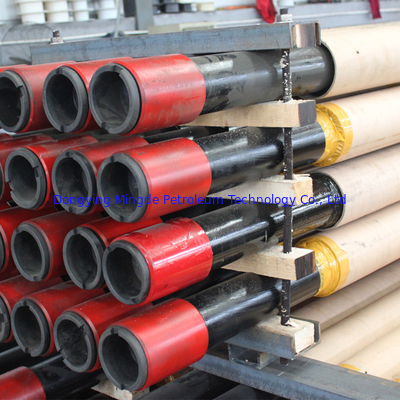

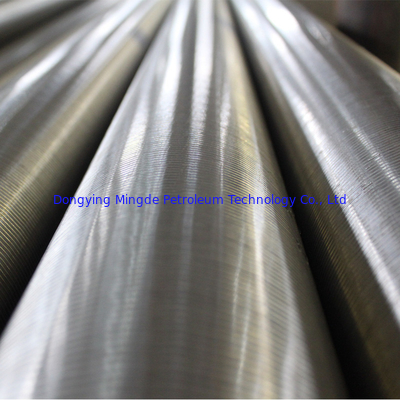

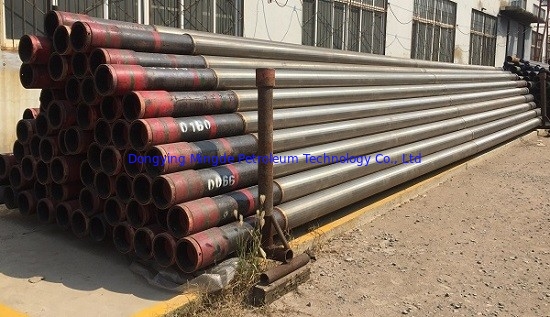

The wire wrapped screen usually includes the 3 parts, basepipe (perforated or slotted), wire shroud (including wires and supporting bs) , welding rings.

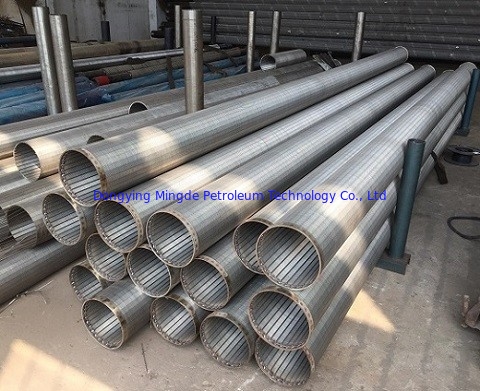

But for water wells, due to costs consideration, the clients may use wire shroud with welding rings, no basepipe.
According to formation medium particle size, we will propose wire wrapped screen with different slot sizes.
Following are basic technical specification of wire wrapped screen pipe.
| Size | 2-3/8''-7'' |
| Length | R1, R2, R3 |
| Basepipe Grade | API Spec 5CT J55, K55, N80, L80-1, L80-13Cr, P110 |
| Wire materials | Stainless Steel AISI 304, AISI316L |
| Packing | In Bundles |
| Application | Oil Well, Water Well, Gas Well Gravel Pack and Well Completion |
